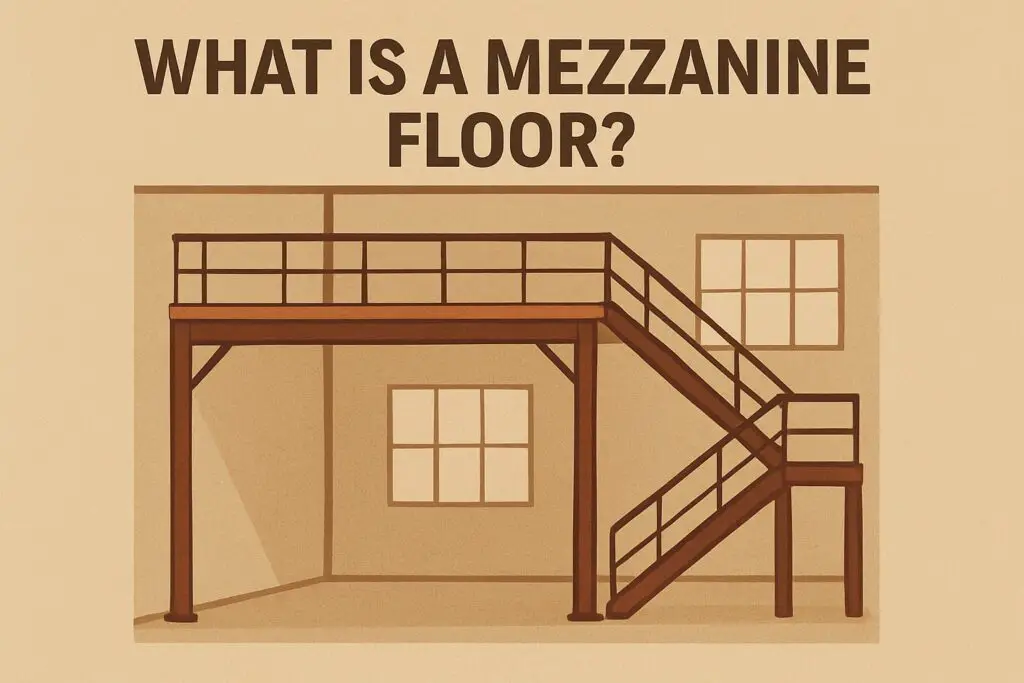

A mezzanine floor is an intermediate floor built between the main floors of a building, typically between the ground floor and first floor. These partial floors don’t extend across the entire building footprint and are designed to maximise vertical space without requiring a full building extension.
Mezzanine floors offer a practical solution for creating additional floor space in existing buildings. They’re particularly valuable in commercial properties, warehouses, and retail spaces where every square metre counts.
Mezzanine Floor Basics
What Makes a Floor a Mezzanine?
A mezzanine floor has specific characteristics that distinguish it from other types of flooring:
- Partial coverage: Covers less than 50% of the floor area below it
- Open design: Usually overlooks the main floor space
- Intermediate height: Positioned between existing floors
- Self-supporting structure: Often freestanding with minimal connection to existing walls
The term “mezzanine” comes from the Italian word “mezzano,” meaning middle. This perfectly describes the floor’s position within a building’s structure.
Key Features of Mezzanine Construction
Modern mezzanine floors typically include:
- Steel framework: Provides structural integrity and load-bearing capacity
- Decking system: Often made from steel, concrete, or composite materials
- Safety barriers: Handrails and balustrades for fall protection
- Access points: Stairs, lifts, or ramps for safe movement between levels
Types of Mezzanine Floors
Structural Mezzanines
These permanent installations integrate directly with the building’s structure. They require:
- Building regulations approval
- Structural calculations by qualified engineers
- Professional installation
- Full compliance with fire safety regulations
Structural mezzanines work well for long-term space solutions in offices, retail stores, and manufacturing facilities.
Modular Mezzanine Systems
Modular systems offer flexibility and easier installation:
- Pre-engineered components: Standardised parts for quicker assembly
- Adjustable configurations: Can be modified or relocated
- Reduced installation time: Typically 2-4 weeks versus months for structural options
- Lower initial costs: Less complex approval processes
Rack-Supported Mezzanines
Popular in warehouses and storage facilities:
- Built on top of pallet racking systems
- Maximises storage density
- Combines floor space with vertical storage
- Ideal for pick-and-pack operations
Planning Permission and Building Regulations
When You Need Planning Permission
Most mezzanine floors fall under permitted development rights, but you’ll need planning permission if:
- The building is listed or in a conservation area
- The mezzanine increases the building’s external dimensions
- You’re changing the building’s use classification
- Local planning restrictions apply
Always check with your local planning authority before beginning construction.
Building Regulations Requirements
All mezzanine floors must comply with building regulations covering:
Structural Safety
- Load-bearing capacity calculations
- Foundation requirements
- Connection details to existing structure
Fire Safety
- Escape route provisions
- Fire-resistant materials
- Smoke detection systems
- Emergency lighting
Access and Accessibility
- Stair design and dimensions
- Handrail specifications
- Disabled access considerations where required
Ventilation and Lighting
- Natural light requirements
- Ventilation standards
- Emergency lighting provisions
Design Considerations for Mezzanine Floors
Height Requirements
Minimum ceiling heights:
- Below mezzanine: 2.1 metres minimum
- Above mezzanine: 2.1 metres minimum for occupied spaces
- Total building height: Typically 4.5+ metres for comfortable mezzanine installation
Load Capacity Planning
Different uses require different load capacities:
| Use Type | Typical Load Capacity |
|---|---|
| Office space | 2.5-4.0 kN/m² |
| Storage areas | 7.5-15.0 kN/m² |
| Light industrial | 5.0-10.0 kN/m² |
| Retail display | 4.0-7.5 kN/m² |
Access Solutions
Staircase options:
- Straight flights: Most economical, require more floor space
- Spiral stairs: Space-efficient, higher cost
- Industrial stairs: Heavy-duty for warehouse use
Alternative access methods:
- Passenger lifts for high-traffic areas
- Goods lifts for moving materials
- Ramps for wheelchair accessibility
Benefits of Installing a Mezzanine Floor
Space Maximisation
Mezzanine floors can increase usable floor space by 50-100% without external building extensions. This proves particularly valuable in:
- Urban locations with limited expansion options
- Listed buildings where external changes aren’t permitted
- Leased properties where structural alterations are restricted
Cost-Effectiveness
Compared to relocating or extending buildings, mezzanines offer:
- Lower overall costs: Typically 30-50% less than building extensions
- Faster installation: Weeks rather than months
- Immediate returns: Quick occupancy and revenue generation
- Tax advantages: Often classified as equipment rather than building improvements
Operational Flexibility
Modern mezzanine systems provide:
- Easy reconfiguration as business needs change
- Potential for relocation to new premises
- Integration with existing building services
- Minimal disruption during installation
Common Applications and Uses
Retail Environments
Fashion stores: Create separate sections for different product lines Furniture showrooms: Display larger items on ground level, accessories above Electronics retailers: Separate demonstration areas from sales floors
Office Spaces
Creative agencies: Open-plan ground floors with quiet meeting spaces above Call centres: Supervisory areas overlooking main operations Co-working spaces: Private offices above shared working areas
Industrial Applications
Manufacturing facilities: Quality control areas above production lines Logistics centres: Management offices above warehouse operations Automotive workshops: Parts storage above service bays
Storage and Warehousing
Distribution centres: Pick-and-pack areas above bulk storage Archive facilities: Frequently accessed files on mezzanine levels Retail stockrooms: Fast-moving inventory at accessible heights
Installation Process and Timeline
Phase 1: Design and Approval (4-8 weeks)
- Site survey: Structural assessment and measurements
- Design development: CAD drawings and calculations
- Regulatory submissions: Building control applications
- Final approvals: Sign-off on plans and specifications
Phase 2: Manufacturing (2-6 weeks)
- Component fabrication: Off-site manufacturing of steel framework
- Quality control: Testing and finishing of components
- Delivery scheduling: Coordination with installation timeline
- Site preparation: Ground-level setup and safety measures
Phase 3: Installation (1-3 weeks)
- Framework erection: Steel structure assembly
- Decking installation: Floor surface and safety barriers
- Access construction: Stairs, lifts, or ramps
- Final inspections: Building control and safety checks
Cost Factors and Budgeting
Base Cost Components
Materials and manufacturing: 40-50% of total project cost Installation labour: 20-25% of total project cost Design and engineering: 10-15% of total project cost Regulatory approvals: 5-10% of total project cost
Size and Complexity Factors
| Mezzanine Size | Typical Cost Range (per m²) |
|---|---|
| Small (50-100 m²) | £200-£400 |
| Medium (100-300 m²) | £150-£300 |
| Large (300+ m²) | £120-£250 |
Additional Cost Considerations
Special features:
- Passenger lifts: £15,000-£30,000
- Fire-rated construction: 15-25% premium
- Acoustic treatment: £20-£50 per m²
- Custom finishes: 10-30% additional cost
Maintenance and Safety Requirements
Regular Inspection Schedule
Monthly checks:
- Handrail security and condition
- Stair treads and nosings
- Floor surface integrity
- Access equipment operation
Annual inspections:
- Structural joint conditions
- Load-bearing capacity verification
- Fire safety system testing
- Building regulation compliance review
Safety Management
User training requirements:
- Safe access procedures
- Load limit awareness
- Emergency evacuation routes
- Equipment operation protocols
Documentation maintenance:
- Structural certificates
- Fire safety assessments
- Insurance compliance records
- User safety manuals
Potential Challenges and Solutions
Height Limitations
Problem: Insufficient ceiling height for comfortable use Solutions:
- Consider split-level designs
- Use low-profile construction methods
- Evaluate alternative space solutions
Building Integration Issues
Problem: Existing services and utilities creating obstacles Solutions:
- Early coordination with service engineers
- Flexible framework design
- Service relocation planning
Regulatory Complications
Problem: Complex approval processes in sensitive buildings Solutions:
- Early consultation with building control
- Professional regulatory support
- Heritage-sensitive design approaches
Future Trends in Mezzanine Floor Design
Sustainable Construction Methods
Modern mezzanine projects increasingly focus on:
- Recycled steel frameworks: Reducing environmental impact
- Energy-efficient lighting: LED systems with smart controls
- Sustainable materials: Low-carbon concrete and composite decking
- Circular economy principles: Designed for disassembly and reuse
Smart Building Integration
Technology integration:
- IoT sensors for occupancy monitoring
- Automated climate control systems
- Integrated security and access control
- Smart lighting with presence detection
Modular and Flexible Systems
Adaptable designs:
- Plug-and-play components
- Tool-free reconfiguration
- Mobile mezzanine platforms
- Hybrid temporary-permanent solutions
Choosing the Right Mezzanine Solution
Assessment Criteria
Structural requirements:
- Existing building condition
- Required load capacity
- Available ceiling height
- Integration complexity
Operational needs:
- Intended use patterns
- Access requirements
- Safety considerations
- Future flexibility needs
Budget considerations:
- Initial investment capacity
- Long-term value requirements
- Maintenance budget allocation
- Return on investment timeline
Professional Selection
Key qualifications to verify:
- Structural engineering expertise
- Building regulations knowledge
- Installation experience
- Insurance and bonding coverage
References and portfolio review:
- Similar project experience
- Client testimonials
- Regulatory compliance record
- Post-installation support services
Conclusion
Mezzanine floors provide an excellent solution for maximising space in existing buildings without major construction work. They offer flexibility, cost-effectiveness, and quick installation while maintaining compliance with safety regulations.
The key to a successful mezzanine project lies in thorough planning, professional design, and proper regulatory compliance. Whether you’re looking to expand office space, improve warehouse efficiency, or create additional retail areas, a well-designed mezzanine floor can deliver significant value.
Consider your specific needs, budget constraints, and long-term objectives when evaluating mezzanine options. Professional consultation early in the planning process will help ensure you choose the most appropriate solution for your situation.
For businesses seeking space expansion, mezzanine floors represent one of the most practical and economical approaches available. With proper planning and execution, they can transform underutilised vertical space into valuable, productive areas that enhance your operational capacity and business potential.
Frequently Asked Questions
1. How much weight can a mezzanine floor support?
Standard office mezzanines support 2.5-4.0 kN/m², while industrial applications may require 7.5-15.0 kN/m². The exact capacity depends on structural design, materials used, and installation method. A structural engineer will calculate the specific load capacity for your project based on intended use and safety requirements.
2. Do I need planning permission for a mezzanine floor?
Most internal mezzanine floors fall under permitted development rights and don’t require planning permission. However, you’ll need approval if your building is listed, in a conservation area, or if the mezzanine affects external dimensions. Building regulations approval is always required regardless of planning permission status.
3. How long does it take to install a mezzanine floor?
Installation typically takes 1-3 weeks once manufacturing is complete. The total project timeline, including design, approvals, and manufacturing, usually ranges from 8-16 weeks. Complex projects or those requiring special approvals may take longer.
4. Can a mezzanine floor be removed or relocated?
Modular mezzanine systems can often be dismantled and relocated, though some modification may be required for the new space. Structural mezzanines permanently integrated with the building are more difficult to remove. Consider future flexibility needs when choosing between system types.
5. What’s the minimum ceiling height needed for a mezzanine floor?
You need at least 4.2 metres total ceiling height to install a comfortable mezzanine floor, allowing 2.1 metres clearance both above and below. Some applications may work with slightly less height, but this reduces comfort and may limit potential uses of the space.
